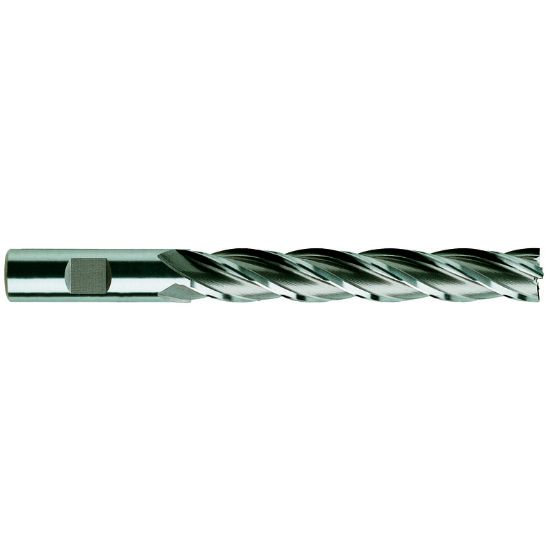

YG-1 9087 DIA 5/8 SH 0.6250 LOC 4.00 OAL 6.1250 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-09087
Delivery date: 3-5 days
$38.88

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Illinois
Application Side Milling, Face Milling
Made In USA No
Package Size 1
Dimensional Specifications
Overall Len 6.1250 155.58MM
End Of Tool Shape Square
Inch/Metric Inch
Cutter Dia 0.6250 15.88MM - 5/8
Length Of Cut 4.0000 101.60MM
Length Type Extra Long
Helix Angle 30°
Tool Material High Speed Steel
Flutes/Inserts 4
Machine Side Connection Size 0.6250 15.88MM
Cutter Style HSS Finisher
Single/Double End Single End
Machine Side Connection Type Weldon
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Cutting Edge Mat HSS
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
