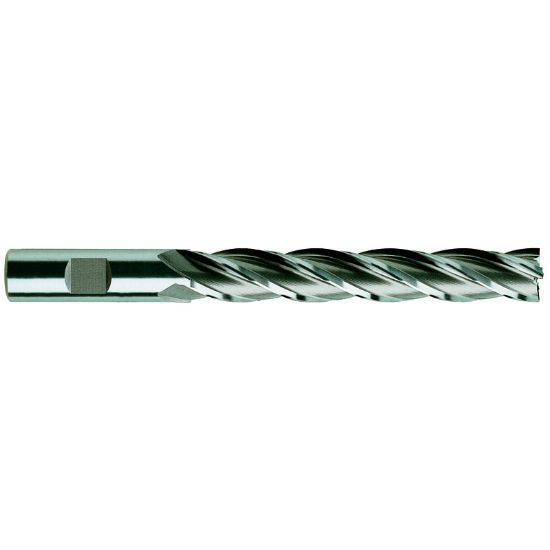

YG-1 9051 DIA 5/16 SH 0.3750 LOC 2.00 OAL 3.7500 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-09051
Delivery date: 3-5 days
$17.17

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Face Milling
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Cutter Style HSS Finisher
Cutter Dia 0.3125 7.94MM - 5/16
Length Type Extra Long
Helix Angle 30°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
