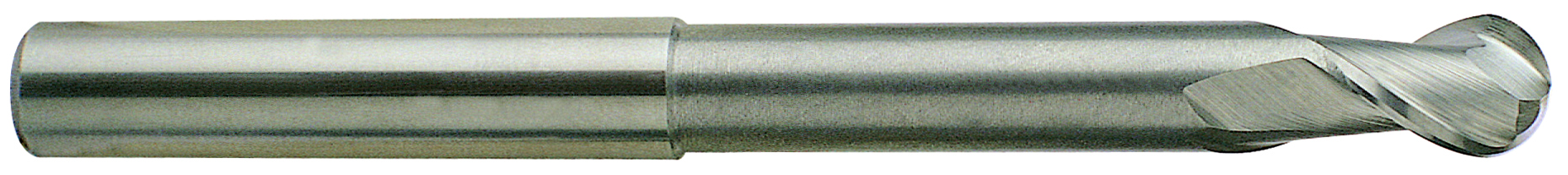

Picture of YG-1 89906 Dia 3/4 SH 0.7500 LOC 1.00 OAL7.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Alu-Power End Mill

YG-1 89906 Dia 3/4 SH 0.7500 LOC 1.00 OAL7.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Alu-Power End Mill

Part Number: YG-89906

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1206350
Vendor: Sussex Tool and Supply
$222.45
YG-1 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End Alu-Power End Mill Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.7500 19.05MM
Overall Length 7.0000 177.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
Neck Length 4.2500 107.95MM
