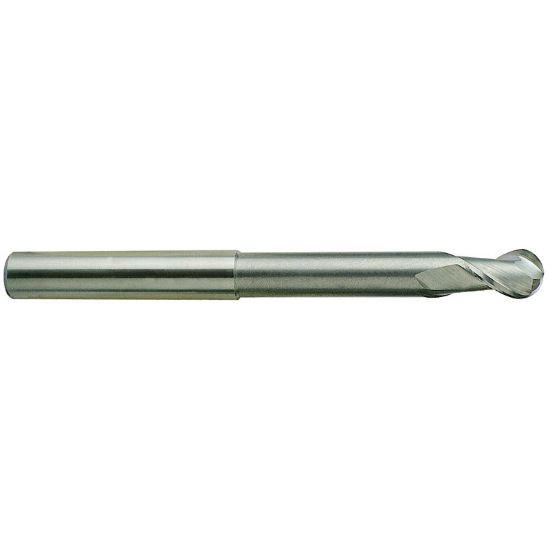

YG-1 89902 DIA 1/2 SH 0.50 LOC 0.6250 OAL 6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-89902
Delivery date: 3-5 days
$107.44

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA No
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
End Of Tool Shape Ball Nose
Length Type Long / With Neck
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Neck Length 4.0000 101.60MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Overall Len 6.0000 152.40MM
Length Of Cut 0.6250 15.88MM
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Carbide Ball Finisher
Cut Rating Aluminum, Graphite, Plastic
Helix Angle 37°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
