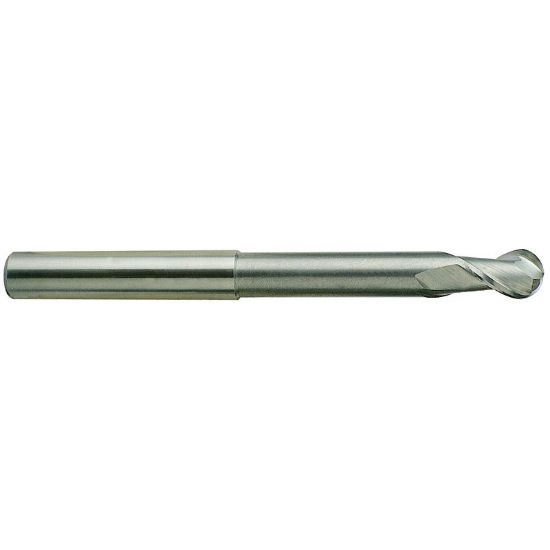

YG-1 89593 DIA 1/2 SH 0.50 LOC 0.6250 OAL 5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-89593
Delivery date: 3-5 days
$94.28

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Profile Milling, Ball Slot Milling, Copy Milling, Side Milling, Ball Milling
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Neck Length 2.2500 57.15MM
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Helix Angle 37°
Overall Len 5.0000 127.00MM
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
