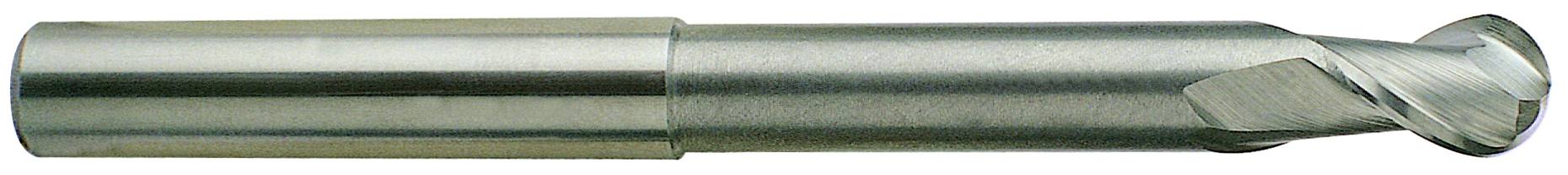

Picture of YG-1 89593 Dia 1/2 SH 0.50 LOC 0.6250 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Alu-Power End Mill

YG-1 89593 Dia 1/2 SH 0.50 LOC 0.6250 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Alu-Power End Mill

Part Number: YG-89593

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1216176
Vendor: Sussex Tool and Supply
$104.16
YG-1 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End Alu-Power End Mill Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.5000 12.70MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
Neck Length 2.2500 57.15MM
