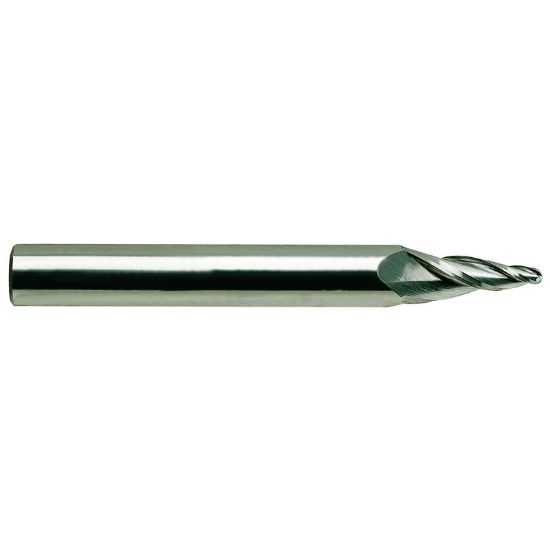

YG-1 88902 DIA 3/16 SH 0.50 LOC 1.2500 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-88902
Delivery date: 3-5 days
$66.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Length Type Standard
End Of Tool Shape Ball Nose
Taper Flute Yes
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 1.2500 31.75MM
Cutter Style Carbide Ball Finisher
Cutter Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Overall Len 4.0000 101.60MM
Helix Angle 30°
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Taper Angle 7.0°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
