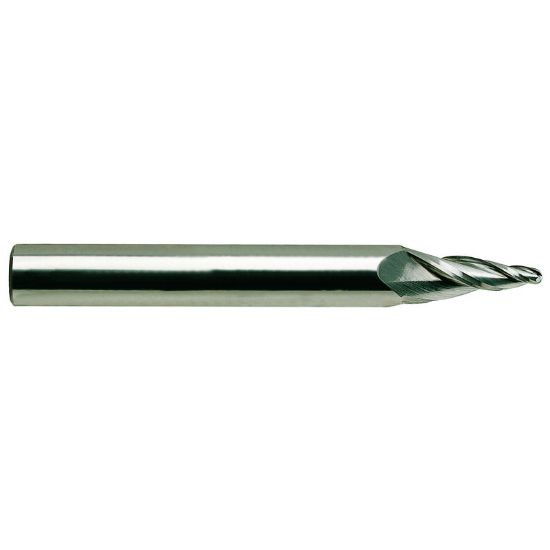

YG-1 88560 DIA 1/8 SH 0.2500 LOC 0.7500 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-88560
Delivery date: 3-5 days
$29.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Copy Milling, Ball Milling, Ball Slot Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.0000 76.20MM
Helix Angle 30°
Flutes/Inserts 3
Cutter Style Carbide Ball Finisher
Taper Angle 5.0°
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
End Of Tool Shape Ball Nose
Taper Flute Yes
Length Of Cut 0.7500 19.05MM
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
