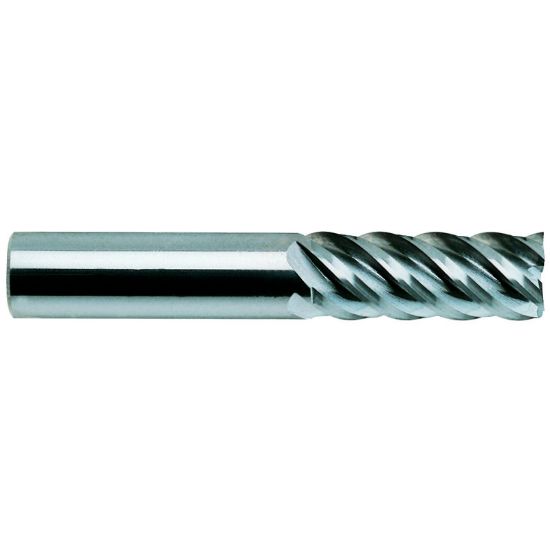

YG-1 86600 DIA 1 SH 1.00 LOC 2.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-86600
Delivery date: 3-5 days
$185.39

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Single/Double End Single End
Cutter Dia 1.0000 25.40MM
Length Type Standard
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Overall Len 4.0000 101.60MM
Length Of Cut 2.0000 50.80MM
Flutes/Inserts 5
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
End Of Tool Shape Square
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
