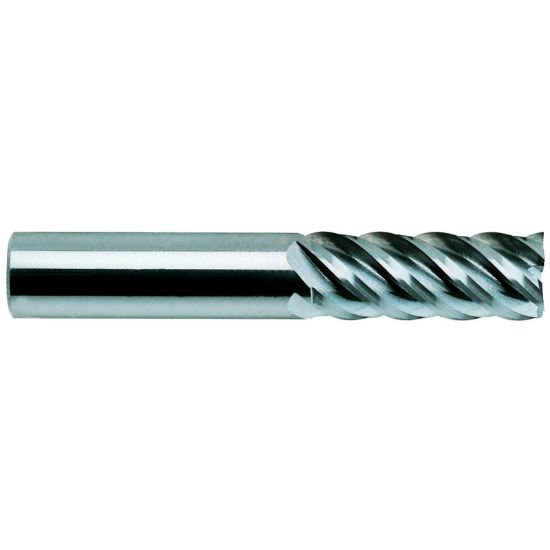

YG-1 86598TH DIA 3/4 SH 0.7500 LOC 1.6250 OAL 4.00 End Mill Standard Flute High Helix Carbide Hardslick Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-86598TH
Delivery date: 3-5 days
$131.92

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Coating Hardslick
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Length Type Standard
End Of Tool Shape Square
Single/Double End Single End
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
