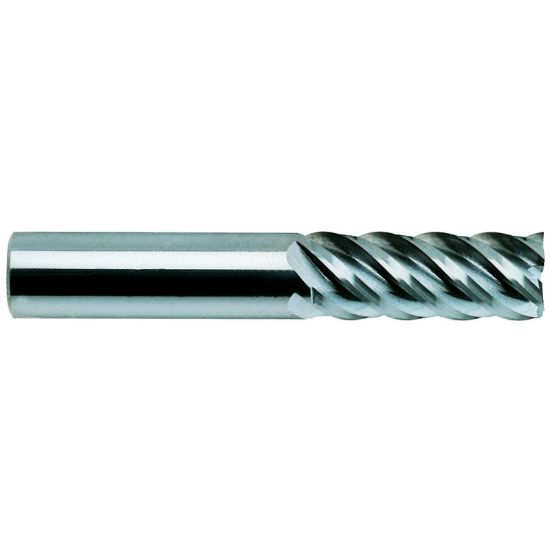

YG-1 86558TN DIA 1/8 SH 0.1250 LOC 0.50 OAL 1.50 End Mill Standard Flute High Helix Carbide TiN Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-86558TN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Performance Rating General Performance
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
End Of Tool Shape Square
Cutter Style Carbide Finisher
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Helix Angle 45°
Single/Double End Single End
Overall Len 1.5000 38.10MM
Flutes/Inserts 5
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Cutter Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.5000 12.70MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
