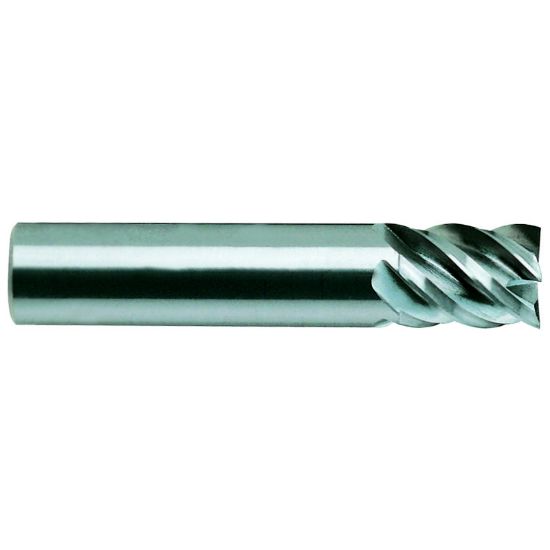

YG-1 85573TH DIA 1/4 SH 0.2500 LOC 0.3750 OAL 2.00 End Mill Standard Flute High Helix Carbide Hardslick Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-85573TH
Delivery date: 3-5 days
$21.39

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Coating Hardslick
Performance Rating General Performance
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Length Of Cut 0.3750 9.53MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 5
Helix Angle 45°
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Type Stub
End Of Tool Shape Square
Overall Len 2.0000 50.80MM
Single/Double End Single End
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
