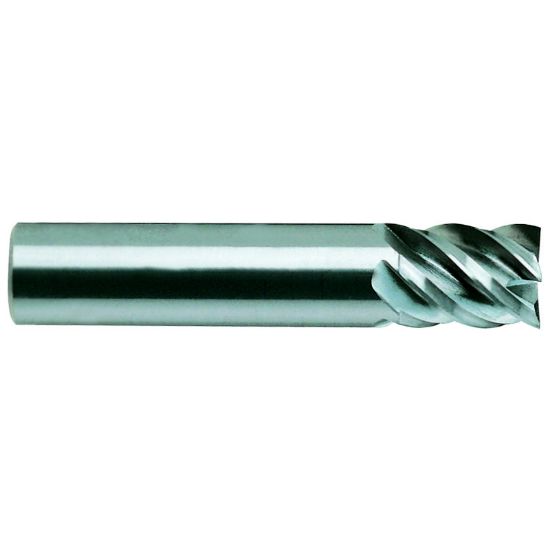

YG-1 85570TH DIA 7/32 SH 0.2500 LOC 0.3750 OAL 2.00 End Mill Standard Flute High Helix Carbide Hardslick Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-85570TH
Delivery date: 3-5 days
$23.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Coating Hardslick
Performance Rating General Performance
Package Size 1
Application Face Milling, Side Milling
Made In USA No
Dimensional Specifications
Flutes/Inserts 5
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutter Dia 0.2188 5.56MM - 7/32
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Overall Len 2.0000 50.80MM
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Length Type Stub
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
