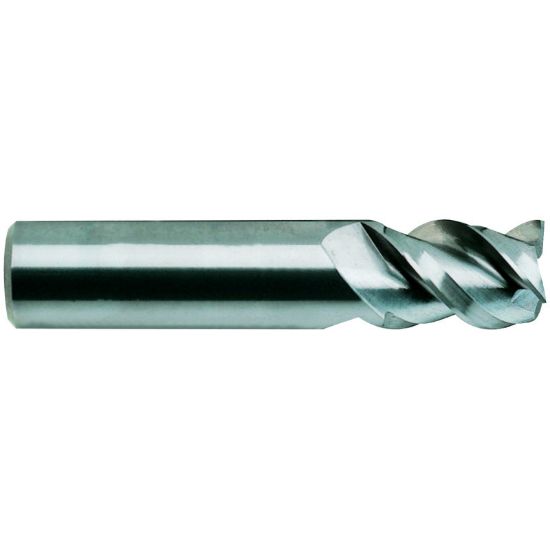

YG-1 83907 DIA 5/8 SH 0.6250 LOC 2.50 OAL 6.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-83907
Delivery date: 3-5 days
$121.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Application Face Milling, Side Milling
Made In USA No
Dimensional Specifications
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Length Type Long
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Helix Angle 50°
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
