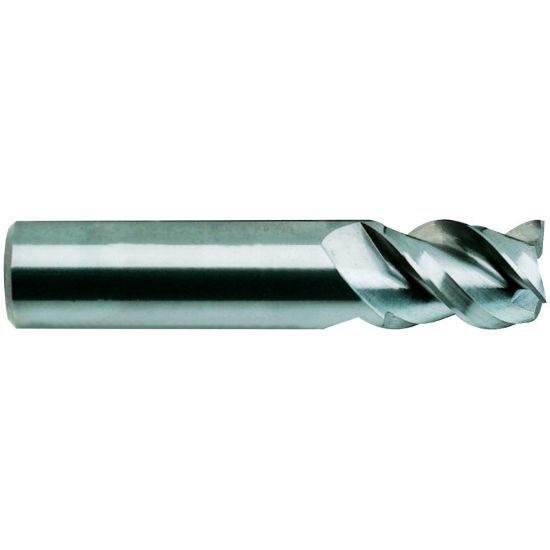

YG-1 83573 DIA 1/4 SH 0.2500 LOC 0.50 OAL 2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-83573
Delivery date: 3-5 days
$14.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating General Performance
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Overall Len 2.0000 50.80MM
Flutes/Inserts 3
End Of Tool Shape Square
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 50°
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Type Stub
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Length Of Cut 0.5000 12.70MM
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
