  • YG-1 8338 DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

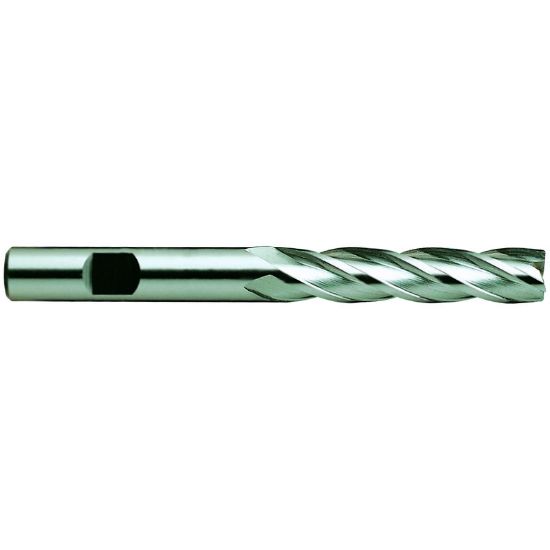

Picture of YG-1 8338 DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 8338 DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-08338
Delivery date: 3-5 days
$38.16

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling, Slot Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle 30°
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutter Style Cobalt Finisher
Inch/Metric Inch
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.6250 117.48MM
Length Type Long
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
