  • YG-1 8301 DIA 5/16 SH 0.3750 LOC 1.3750 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

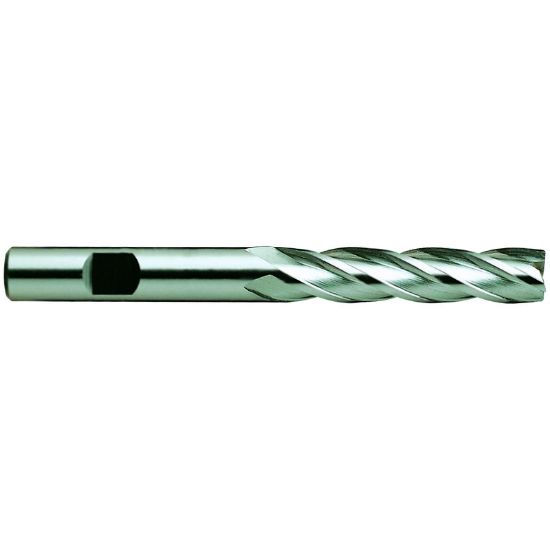

Picture of YG-1 8301 DIA 5/16 SH 0.3750 LOC 1.3750 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 8301 DIA 5/16 SH 0.3750 LOC 1.3750 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-08301
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling, Slot Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Overall Len 3.1250 79.38MM
Helix Angle 30°
Tool Material Cobalt
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Of Cut 1.3750 34.93MM
Cutter Dia 0.3125 7.94MM - 5/16
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
Single/Double End Single End
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
