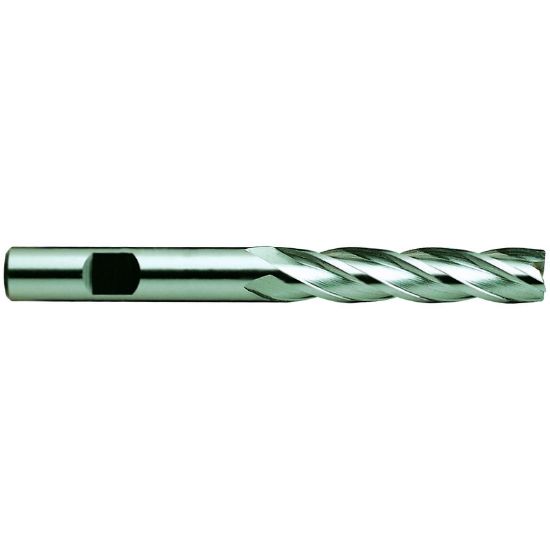

YG-1 8176 DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-08176
Delivery date: 3-5 days
$67.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Illinois
Application Side Milling, Face Milling
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
End Of Tool Shape Square
Length Of Cut 4.0000 101.60MM
Helix Angle 30°
Overall Len 6.5000 165.10MM
Cutter Dia 1.0000 25.40MM
Tool Material High Speed Steel
Flutes/Inserts 4
Length Type Long
Cutter Style HSS Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat HSS
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
