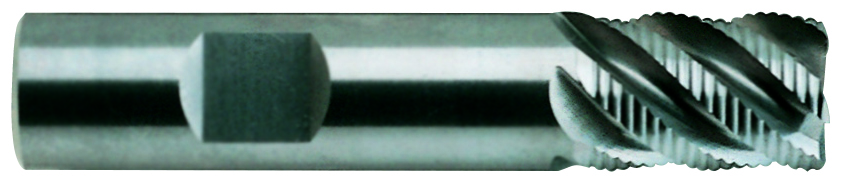

Picture of YG-1 81593TC Dia 1/2 SH 0.50 LOC 0.6250 OAL2.50 End Mill Carbide TiCN Single End Square Sharp Carbide EndMillS

YG-1 81593TC Dia 1/2 SH 0.50 LOC 0.6250 OAL2.50 End Mill Carbide TiCN Single End Square Sharp Carbide EndMillS

Part Number: YG-81593TC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1214243
Vendor: Sussex Tool and Supply
$74.73
YG-1 End Mill Carbide TiCN Square Sharp Flutes 5 Single End CARBIDE ENDMILLS Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating <25HRC Steel, Stainless Steel, Titanium, High Temp, Inconel
Coating TICN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Tool Dia 0.5000 12.70MM - 1/2
Length Type Stub
Performance Rating High Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
