  • YG-1 8144 DIA 7/8 SH 0.8750 LOC 3.50 OAL 5.7500 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

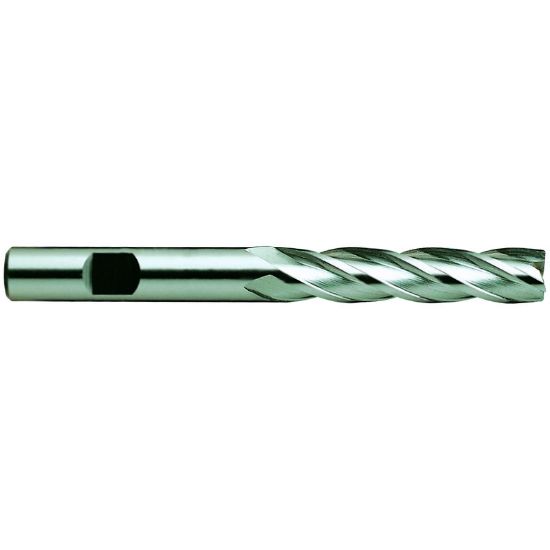

Picture of YG-1 8144 DIA 7/8 SH 0.8750 LOC 3.50 OAL 5.7500 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

YG-1 8144 DIA 7/8 SH 0.8750 LOC 3.50 OAL 5.7500 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-08144
Delivery date: 3-5 days
$50.47

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Package Size 1
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.8750 22.23MM - 7/8
Overall Len 5.7500 146.05MM
Length Of Cut 3.5000 88.90MM
Inch/Metric Inch
Flutes/Inserts 4
Length Type Long
Machine Side Connection Type Weldon
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Tool Material High Speed Steel
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Machine Side Connection Size 0.8750 22.23MM
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
