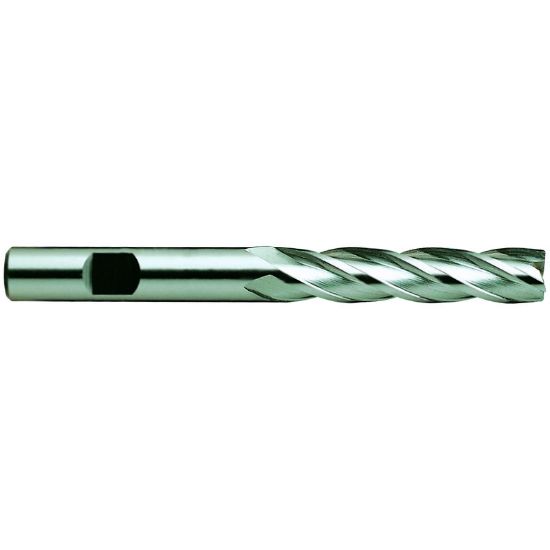

YG-1 8051 DIA 5/16 SH 0.3750 LOC 1.3750 OAL 3.1250 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-08051
Delivery date: 3-5 days
$11.77

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating General Performance
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 1.3750 34.93MM
Cutter Dia 0.3125 7.94MM - 5/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Machine Side Connection Type Weldon
Inch/Metric Inch
Overall Len 3.1250 79.38MM
Helix Angle 30°
Tool Material High Speed Steel
Flutes/Inserts 4
Length Type Long
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
