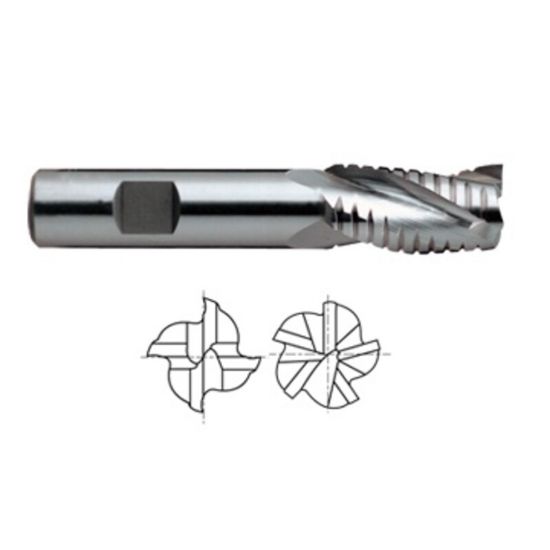

YG-1 79515 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-79515
Delivery date: 3-5 days
$38.33

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Tool Material Powder Metal
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Single End
Cutter Style Powder Metal Rougher
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
End Of Tool Shape Square
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Length Of Cut 1.2500 31.75MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
