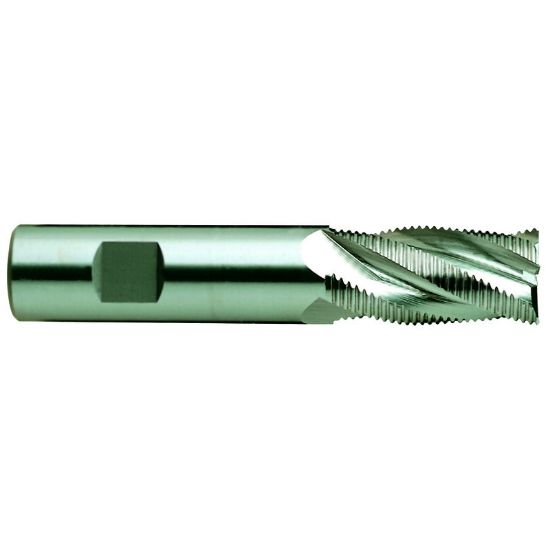

YG-1 78524PH DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Powder Metal Hardslick Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-78524PH
Delivery date: 3-5 days
$115.85

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Coating Hardslick
Performance Rating High Performance
Package Size 1
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Inch/Metric Inch
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Length Of Cut 3.0000 76.20MM
Length Type Long
End Of Tool Shape Square
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Single End
Overall Len 5.2500 133.35MM
Cutter Style Powder Metal Rougher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
