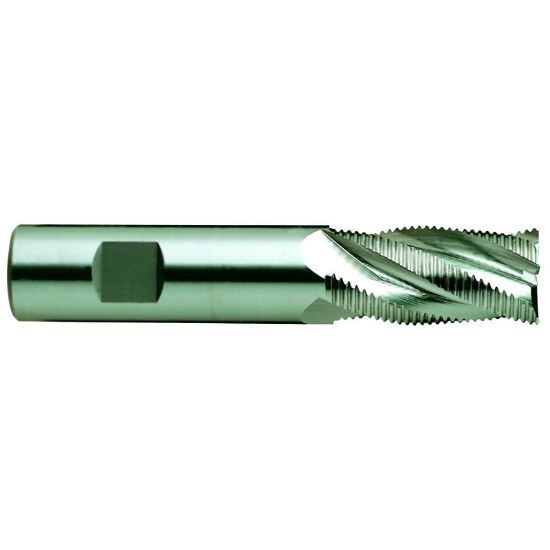

YG-1 78507PH DIA 1/4 SH 0.3750 LOC 1.2500 OAL 3.0625 End Mill Powder Metal Hardslick Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-78507PH
Delivery date: 3-5 days
$47.99

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Coating Hardslick
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Cutter Style Powder Metal Rougher
Helix Angle 30°
Length Type Long
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Inch/Metric Inch
Length Of Cut 1.2500 31.75MM
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Powder Metal
Overall Len 3.0625 77.79MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
