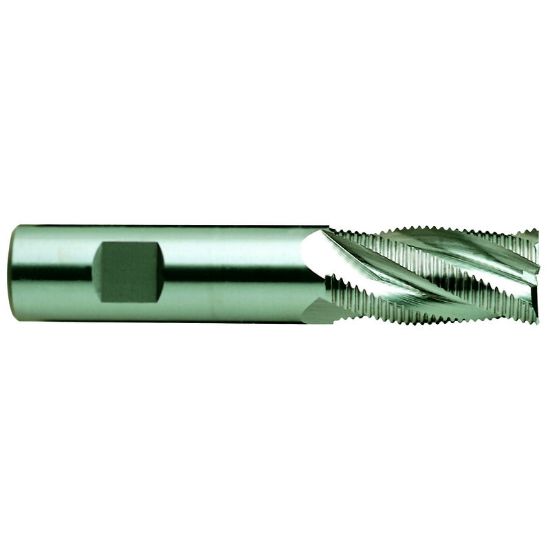

YG-1 77924QH DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Powder Metal Hardslick Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-77924QH
Delivery date: 3-5 days
$105.96

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Made In USA No
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Cutter Style Powder Metal Rougher
Helix Angle 30°
Overall Len 3.8750 98.43MM
Flutes/Inserts 4
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Powder Metal
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Energy Yes
