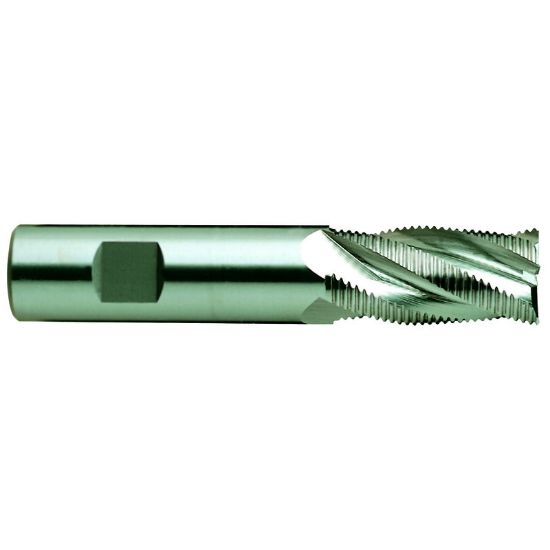

YG-1 76394CE DIA 7/8 SH 0.8750 LOC 1.8750 OAL 4.1250 End Mill Cobalt TiAlN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-76394CE
Delivery date: 3-5 days
$96.15

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Coating TiAlN
Shipping State Illinois
Dimensional Specifications
Helix Angle 30°
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Size 0.8750 22.23MM
Flutes/Inserts 5
Cutter Style Cobalt Fine Rougher
Length Of Cut 1.8750 47.63MM
Length Type Standard
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Overall Len 4.1250 104.78MM
Cutter Dia 0.8750 22.23MM - 7/8
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
