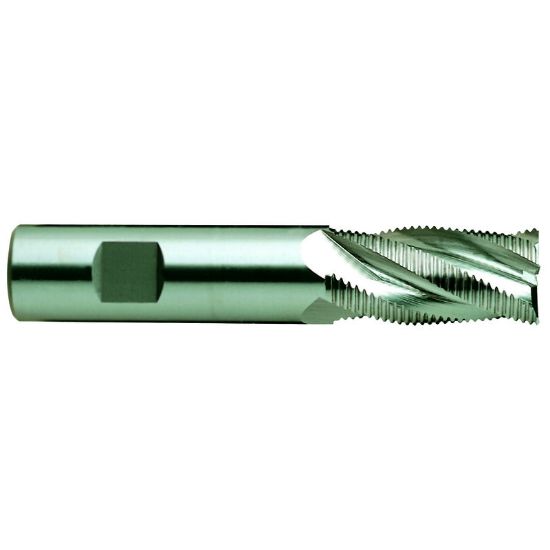

YG-1 75507PH DIA 1/4 SH 0.3750 LOC 0.2500 OAL 2.0620 End Mill Powder Metal Hardslick Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-75507PH
Delivery date: 3-5 days
$37.59

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating Hardslick
Performance Rating High Performance
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
Length Type Stub
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Square
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Machine Side Connection Type Weldon
Cutter Style Powder Metal Rougher
Helix Angle 30°
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Powder Metal
Overall Len 2.0620 52.37MM
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
