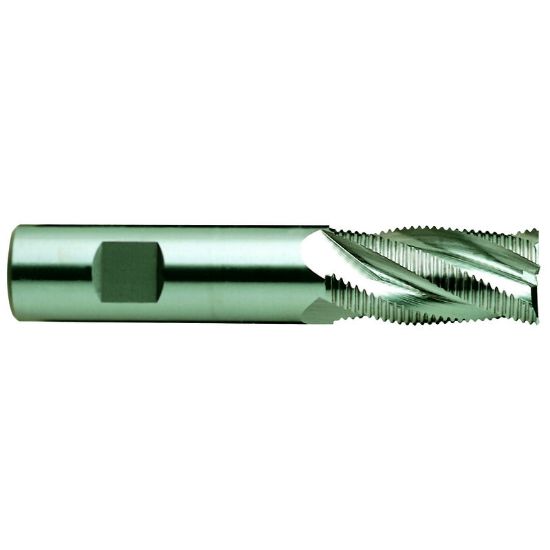

YG-1 75507 DIA 1/4 SH 0.3750 LOC 0.2500 OAL 2.0620 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-75507
Delivery date: 3-5 days
$25.91

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Cut Rating <25HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Machine Side Connection Type Weldon
Helix Angle 30°
Overall Len 2.0620 52.37MM
Single/Double End Single End
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Square
Length Type Stub
Cutter Style Powder Metal Rougher
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Powder Metal
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Powder Metal
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
