  • YG-1 7357 DIA 3/4 SH 0.50 LOC 1.6250 OAL 3.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

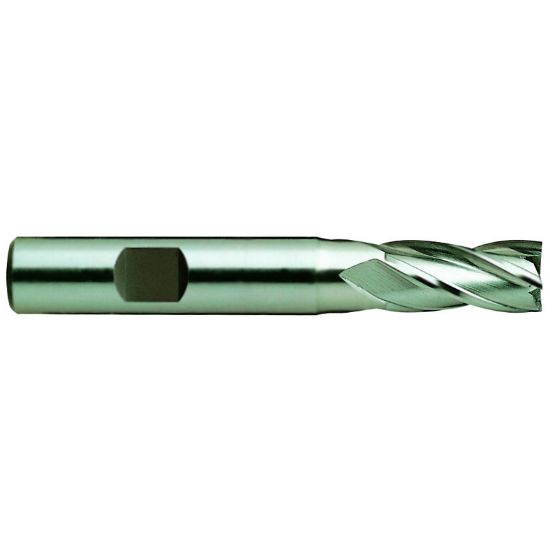

Picture of YG-1 7357 DIA 3/4 SH 0.50 LOC 1.6250 OAL 3.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 7357 DIA 3/4 SH 0.50 LOC 1.6250 OAL 3.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07357
Delivery date: 3-5 days
$34.69

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Overall Len 3.6250 92.08MM
End Of Tool Shape Square
Flutes/Inserts 4
Length Of Cut 1.6250 41.28MM
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
