  • YG-1 7349 DIA 11/16 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

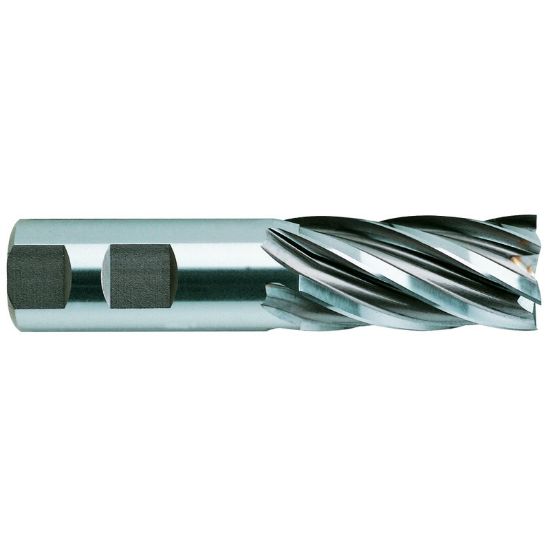

Picture of YG-1 7349 DIA 11/16 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 7349 DIA 11/16 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07349
Delivery date: 3-5 days
$32.59

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Length Type Standard
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Square
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Flutes/Inserts 6
Cutter Style Cobalt Finisher
Inch/Metric Inch
Cutter Dia 0.6875 17.46MM - 11/16
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
