  • YG-1 73467CN DIA 1-3/4 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

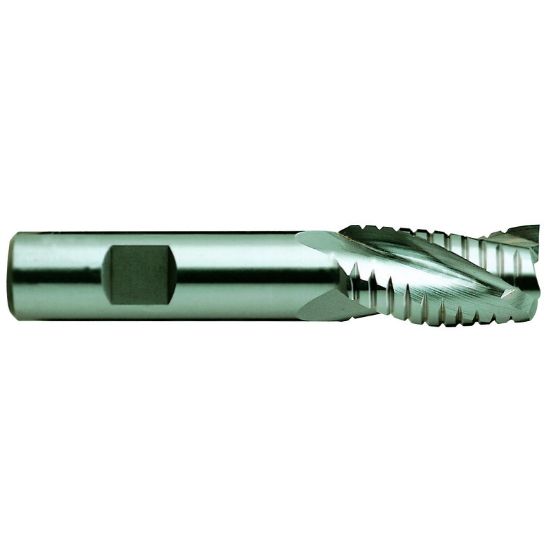

Picture of YG-1 73467CN DIA 1-3/4 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 73467CN DIA 1-3/4 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-73467CN
Delivery date: 3-5 days
$189.32

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Shipping State Illinois
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
End Of Tool Shape Square
Helix Angle 30°
Cutter Style Cobalt Rougher/Finisher
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Cutter Dia 1.7500 44.45MM - 1-3/4
Overall Len 4.2500 107.95MM
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
