  • YG-1 73348CN DIA 11/16 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

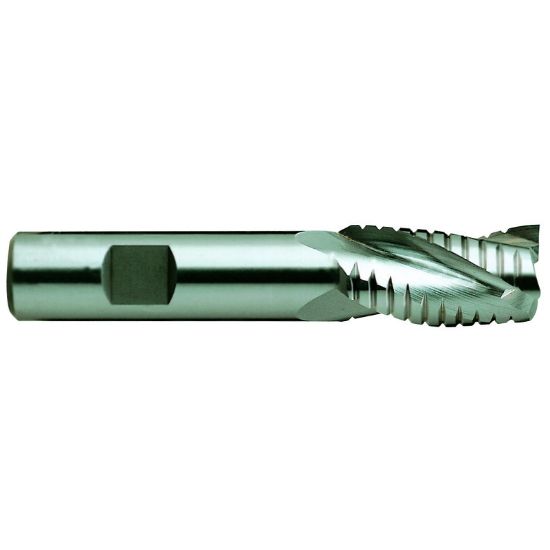

Picture of YG-1 73348CN DIA 11/16 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 73348CN DIA 11/16 SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-73348CN
Delivery date: 3-5 days
$54.77

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Overall Len 3.7500 95.25MM
Inch/Metric Inch
Cutter Dia 0.6875 17.46MM - 11/16
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Machine Side Connection Type Weldon
Helix Angle 30°
Flutes/Inserts 4
Length Of Cut 1.6250 41.28MM
Length Type Standard
Cutter Style Rougher/Finisher
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
