  • YG-1 7322 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

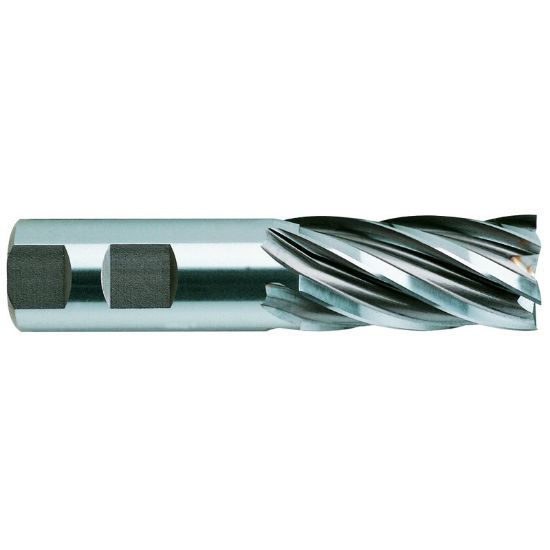

Picture of YG-1 7322 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 7322 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07322
Delivery date: 3-5 days
$19.20

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Length Type Standard
Overall Len 3.2500 82.55MM
Length Of Cut 1.2500 31.75MM
Helix Angle 30°
End Of Tool Shape Square
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutter Style Cobalt Finisher
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
