  • YG-1 7320 DIA 1/2 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

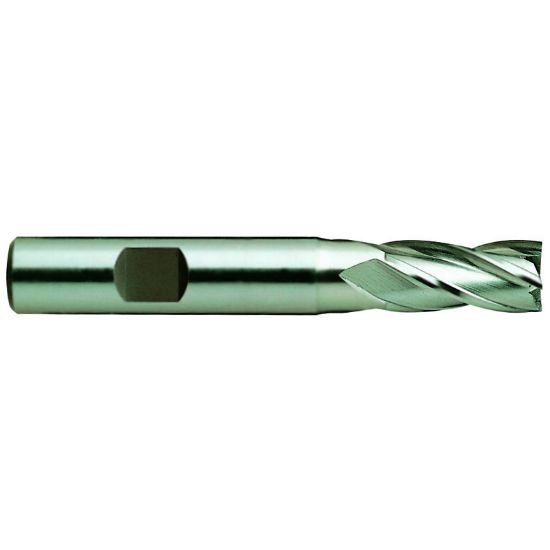

Picture of YG-1 7320 DIA 1/2 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 7320 DIA 1/2 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07320
Delivery date: 3-5 days
$19.15

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Slot Milling, Side Milling
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.6870 68.25MM
Length Type Standard
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Flutes/Inserts 4
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Cutter Style Cobalt Finisher
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
