  • YG-1 72321 DIA 1/2 SH 0.50 LOC 0.50 OAL 2.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

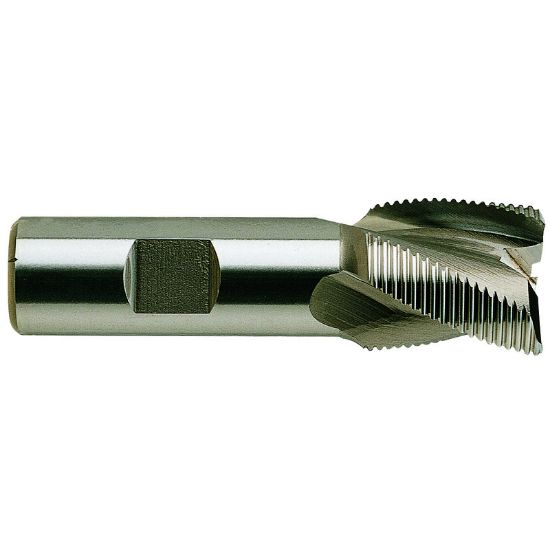

Picture of YG-1 72321 DIA 1/2 SH 0.50 LOC 0.50 OAL 2.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 72321 DIA 1/2 SH 0.50 LOC 0.50 OAL 2.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-72321
Delivery date: 3-5 days
$33.72

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Length Of Cut 0.5000 12.70MM
Length Type Stub
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Weldon
Helix Angle 30°
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Style Cobalt Fine Rougher
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
