  • YG-1 7094 DIA 1 SH 1.00 LOC 3.00 OAL 5.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

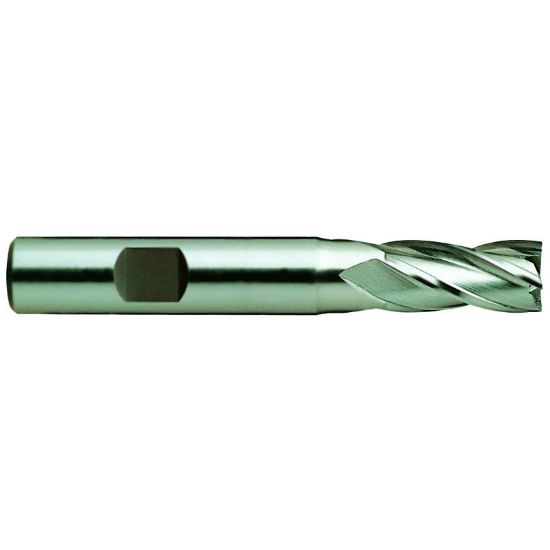

Picture of YG-1 7094 DIA 1 SH 1.00 LOC 3.00 OAL 5.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 7094 DIA 1 SH 1.00 LOC 3.00 OAL 5.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07094
Delivery date: 3-5 days
$81.39

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Dimensional Specifications
Overall Len 5.5000 139.70MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutter Style Cobalt Finisher
Helix Angle 30°
Cutter Dia 1.0000 25.40MM
Length Type Standard
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 3.0000 76.20MM
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
