  • YG-1 70475CN DIA 2 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

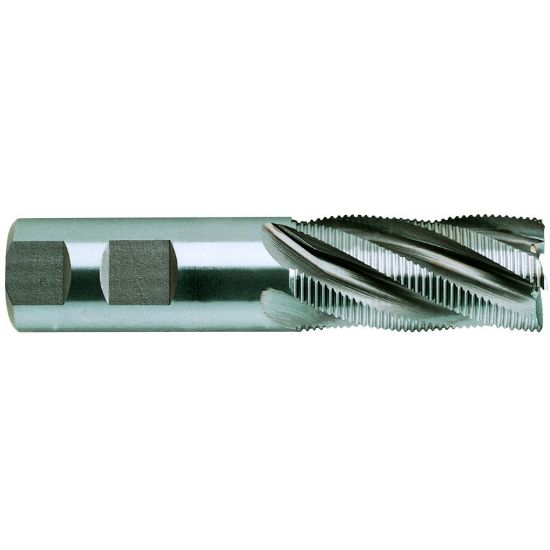

Picture of YG-1 70475CN DIA 2 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 70475CN DIA 2 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-70475CN
Delivery date: 3-5 days
$214.07

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Inch/Metric Inch
Machine Side Connection Size 0.7500 19.05MM
Cutter Style Cobalt Fine Rougher
Overall Len 4.2500 107.95MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
