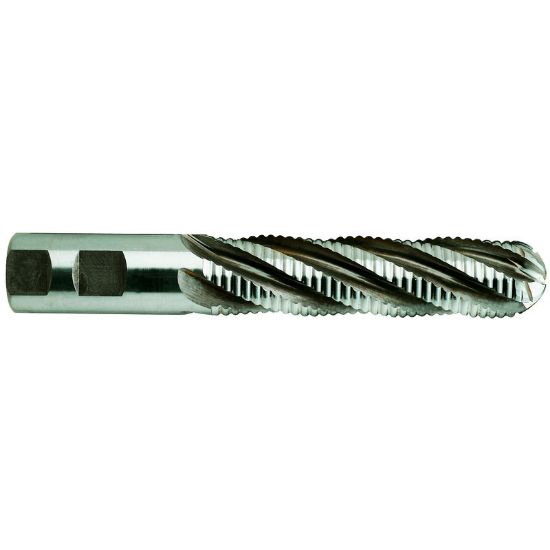

YG-1 69337CC DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Roughing Flute Standard Helix Cobalt TiCN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-69337CC
Delivery date: 3-5 days
$102.08

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Coating TiCN
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.6250 117.48MM
Single/Double End Single End
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Rougher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Type Long
Cutter Dia 0.6250 15.88MM - 5/8
Length Of Cut 2.5000 63.50MM
Inch/Metric Inch
Machine Side Connection Type Weldon
Helix Angle 30°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
