  • YG-1 68461CN DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Roughing Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

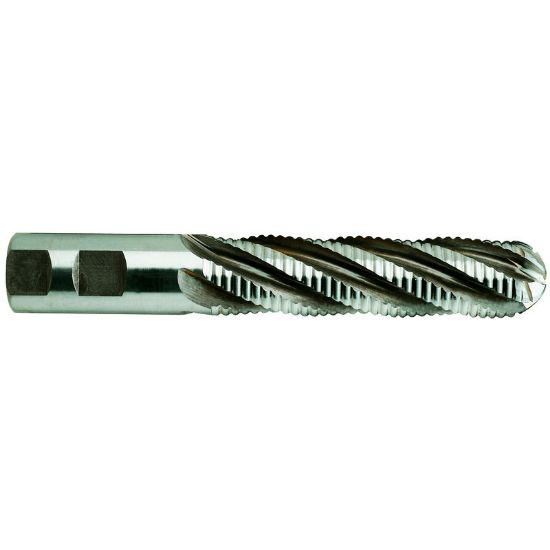

Picture of YG-1 68461CN DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Roughing Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

YG-1 68461CN DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Roughing Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-68461CN
Delivery date: 3-5 days
$253.95

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ball Slot Milling, Profile Milling, Side Milling, Ball Milling, Copy Milling
Coating TiN
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Length Type Standard
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Rougher
Helix Angle 30°
Overall Len 4.5000 114.30MM
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Energy Yes
Job Shop Yes
Agricultural YES
