  • YG-1 68426 DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Roughing Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

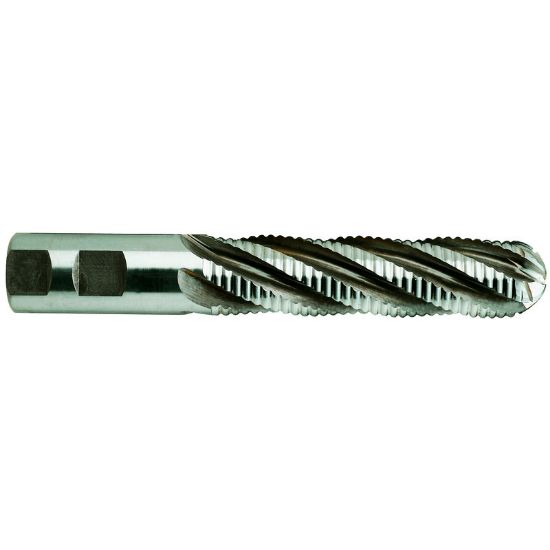

Picture of YG-1 68426 DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Roughing Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 68426 DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Roughing Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-68426
Delivery date: 3-5 days
$102.39

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Copy Milling, Side Milling, Ball Milling
Made In USA No
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Cobalt
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Cutter Dia 1.0000 25.40MM
Helix Angle 30°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 5
Overall Len 4.5000 114.30MM
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Rougher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
Single/Double End Single End
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Energy Yes
Job Shop Yes
Agricultural YES
