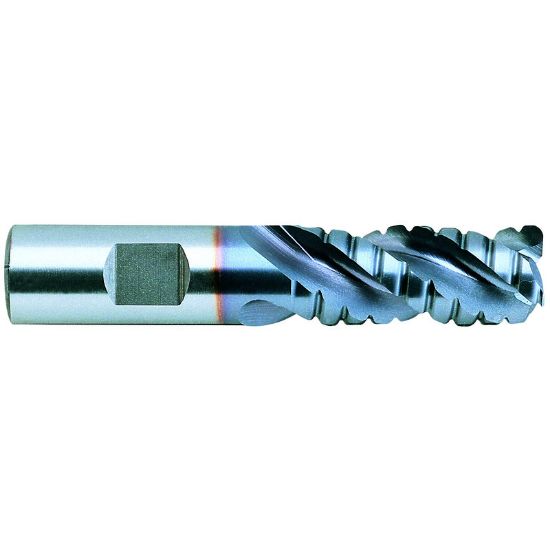

YG-1 67911 DIA 1-1/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Powder Metal Uncoated Single End Corner Radius 0.0900 2.29MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67911
Delivery date: 3-5 days
$190.84

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Length Of Cut 4.0000 101.60MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutter Style Powder Metal Bull Nose Rougher
Inch/Metric Inch
Length Type Long
Corner Radius 0.0900 2.29MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
Flutes/Inserts 3
Machine Side Connection Size 1.2500 31.75MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Tool Material Powder Metal
Machine Side Connection Type Weldon
Helix Angle 42°
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Job Shop Yes
Mold Yes
