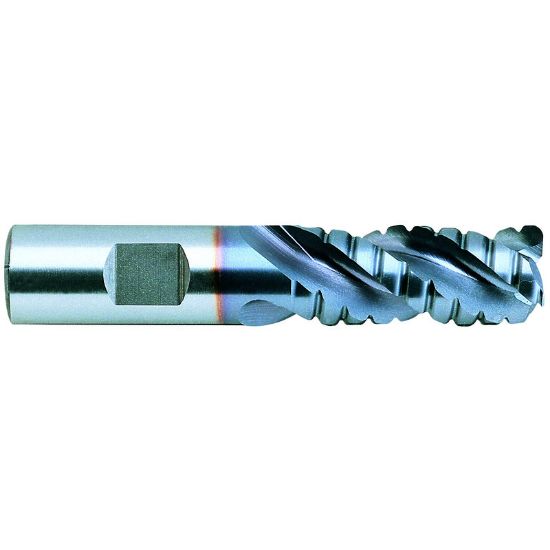

YG-1 67908 DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Powder Metal Uncoated Single End Corner Radius 0.0900 2.29MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67908
Delivery date: 3-5 days
$155.75

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Slot Milling, Face Milling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Corner Radius 0.0900 2.29MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Cutter Style Powder Metal Bull Nose Rougher
Length Of Cut 4.0000 101.60MM
Helix Angle 42°
Cutter Dia 1.0000 25.40MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
End Of Tool Shape Corner Radius
Length Type Long
Single/Double End Single End
Tool Material Powder Metal
Overall Len 6.5000 165.10MM
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Mold Yes
