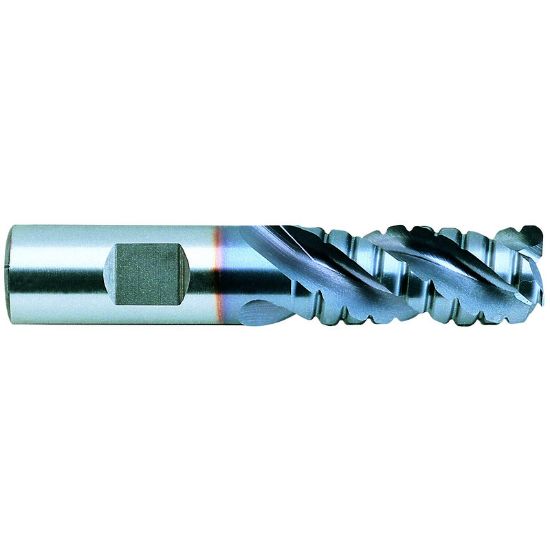

YG-1 67906 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Powder Metal Uncoated Single End Corner Radius 0.1200 3.05MM ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67906
Delivery date: 3-5 days
$100.64

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Weldon
Inch/Metric Inch
Overall Len 5.2500 133.35MM
End Of Tool Shape Corner Radius
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Helix Angle 42°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Corner Radius 0.1200 3.05MM
Length Of Cut 3.0000 76.20MM
Length Type Long
Flutes/Inserts 3
Cutter Style Powder Metal Bull Nose Rougher
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
