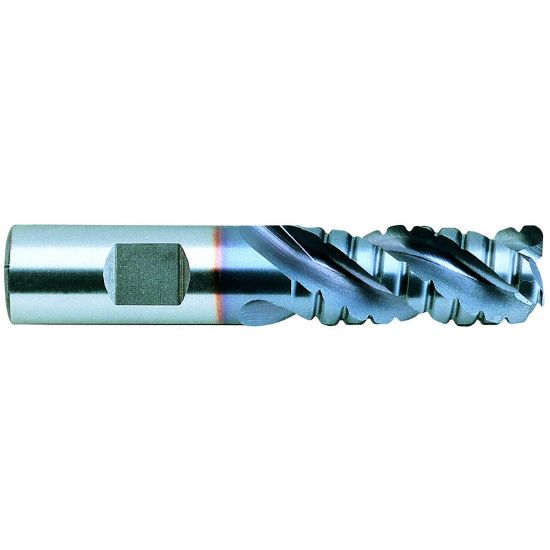

YG-1 67545 DIA 1-1/2 SH 1.2500 LOC 6.00 OAL 8.50 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67545
Delivery date: 3-5 days
$250.65

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Length Type Extra Long
Length Of Cut 6.0000 152.40MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.5000 38.10MM - 1-1/2
Inch/Metric Inch
Single/Double End Single End
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
End Of Tool Shape Square
Tool Material Powder Metal
Machine Side Connection Type Weldon
Overall Len 8.5000 215.90MM
Cutter Style Powder Metal Rougher
Helix Angle 42°
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
