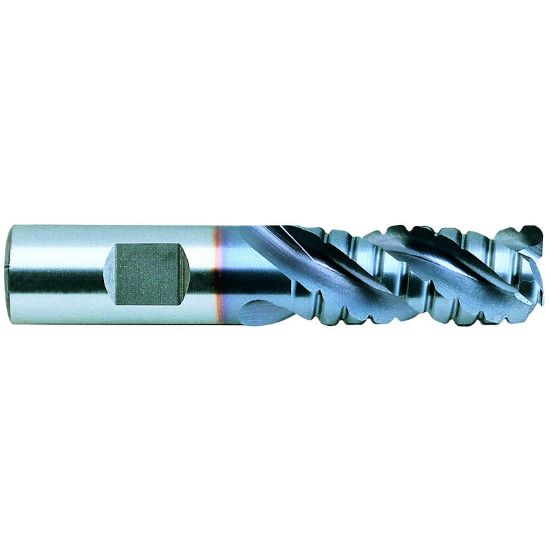

YG-1 67519 DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67519
Delivery date: 3-5 days
$59.04

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating High Performance
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Powder Metal
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Length Type Long
Flutes/Inserts 3
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Helix Angle 42°
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.6250 117.48MM
Single/Double End Single End
Cutter Dia 0.6250 15.88MM - 5/8
Cutter Style Powder Metal Rougher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
