  • YG-1 67461CN DIA 1-1/2 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

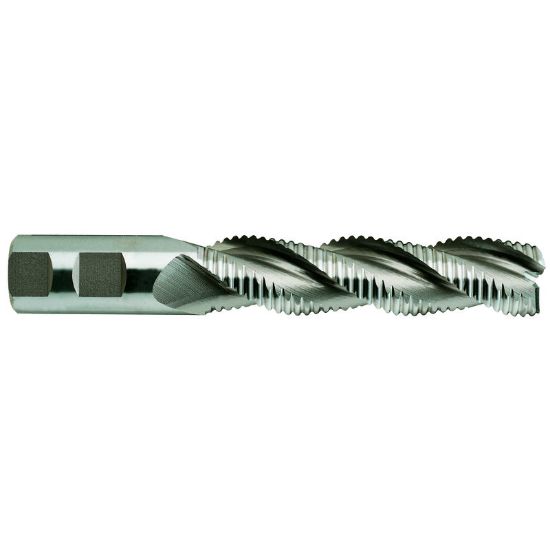

Picture of YG-1 67461CN DIA 1-1/2 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 67461CN DIA 1-1/2 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67461CN
Delivery date: 3-5 days
$250.84

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side Connection Type Weldon
Length Of Cut 4.0000 101.60MM
Machine Side Connection Size 1.2500 31.75MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.5000 38.10MM - 1-1/2
Inch/Metric Inch
Helix Angle 37°
Cutter Style Cobalt Rougher
Length Type Long
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
