  • YG-1 67426CN DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

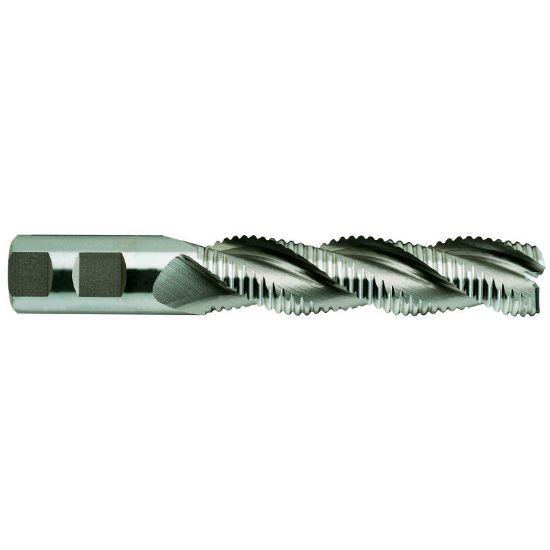

Picture of YG-1 67426CN DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 67426CN DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67426CN
Delivery date: 3-5 days
$135.67

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Application Side Milling, Face Milling
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Length Type Long
Cutter Style Cobalt Rougher
Overall Len 6.5000 165.10MM
Flutes/Inserts 3
Length Of Cut 4.0000 101.60MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
End Of Tool Shape Square
Helix Angle 37°
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
