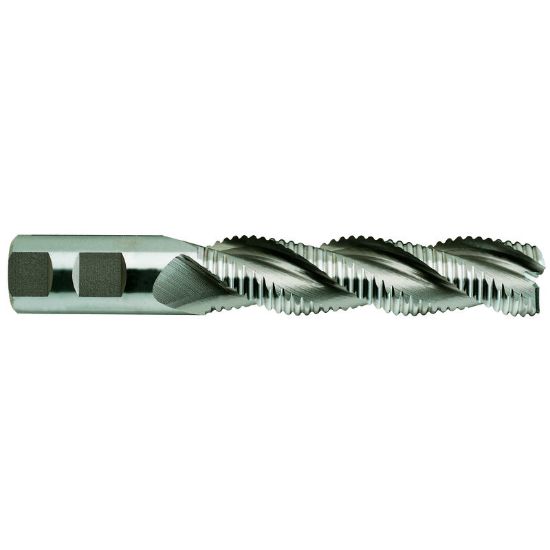

Picture of YG-1 67426 DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 67426 DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67426
Delivery date: 3-5 days
$107.17

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Tool Material Cobalt
Single/Double End Single End
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Length Of Cut 4.0000 101.60MM
Overall Len 6.5000 165.10MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Cutter Style Cobalt Rougher
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
End Of Tool Shape Square
Helix Angle 37°
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
