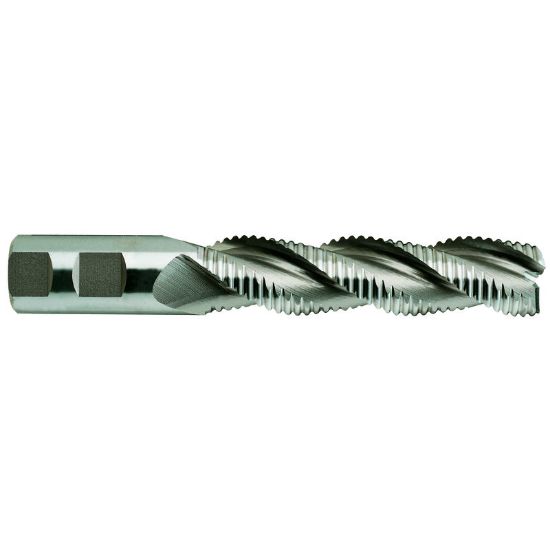

YG-1 67359CC DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Cobalt TiCN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67359CC
Delivery date: 3-5 days
$96.12

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Coating TiCN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 5.2500 133.35MM
Cutter Style Cobalt Rougher
Length Of Cut 3.0000 76.20MM
Length Type Long
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Helix Angle 37°
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
