  • YG-1 67321CN DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Cobalt TiN Single End Square Sharp General Purpose

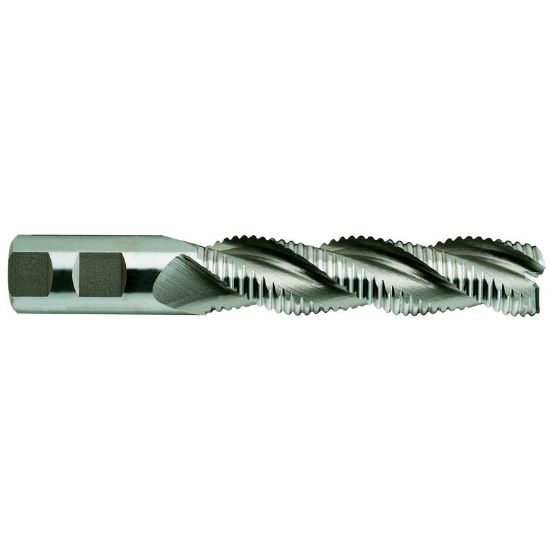

Picture of YG-1 67321CN DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Cobalt TiN Single End Square Sharp General Purpose

YG-1 67321CN DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-67321CN
Delivery date: 3-5 days
$56.88

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Application Face Milling, Side Milling
Package Size 1
Coating TiN
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
End Of Tool Shape Square
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Helix Angle 37°
Cutter Style Cobalt Rougher
Length Type Long
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Length Of Cut 2.0000 50.80MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
